Rijnmod Power Plant - 800MW Natural Gas Combined Cycle

Rotterdam / The Netherlands / 2004

Main Contractor : Bechtel - (USA) , Enka A.Ş. - (Turkey) J.V.

Start Date : 01/2003

End Date : 05/2004

Electrical Scope Of Works

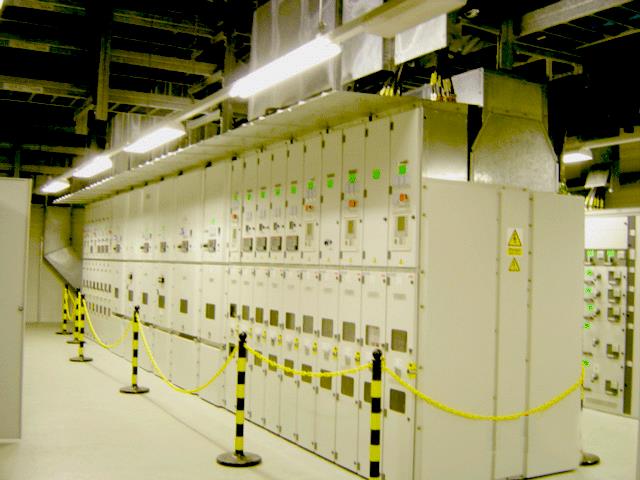

  • MV System
  • LV System
  • DCS System
  • Iso Busduct and Generator Circuit Breakers
  • Black Start Generators
  • Heat Tracing System
  • Instrumentation System
  • Lighting System
  • Earthing  System
  • Fire Alarm System
  • CCTV and SecuritySystem
  • Telephone and Data System



Rijnmod Power Plant - 800MW Natural Gas Combined Cycle
Rijnmod Power Plant - 800MW Natural Gas Combined Cycle
Rijnmod Power Plant - 800MW Natural Gas Combined Cycle Rijnmod Power Plant - 800MW Natural Gas Combined Cycle
Rijnmod Power Plant - 800MW Natural Gas Combined Cycle Rijnmod Power Plant - 800MW Natural Gas Combined Cycle
Rijnmod Power Plant - 800MW Natural Gas Combined Cycle Rijnmod Power Plant - 800MW Natural Gas Combined Cycle

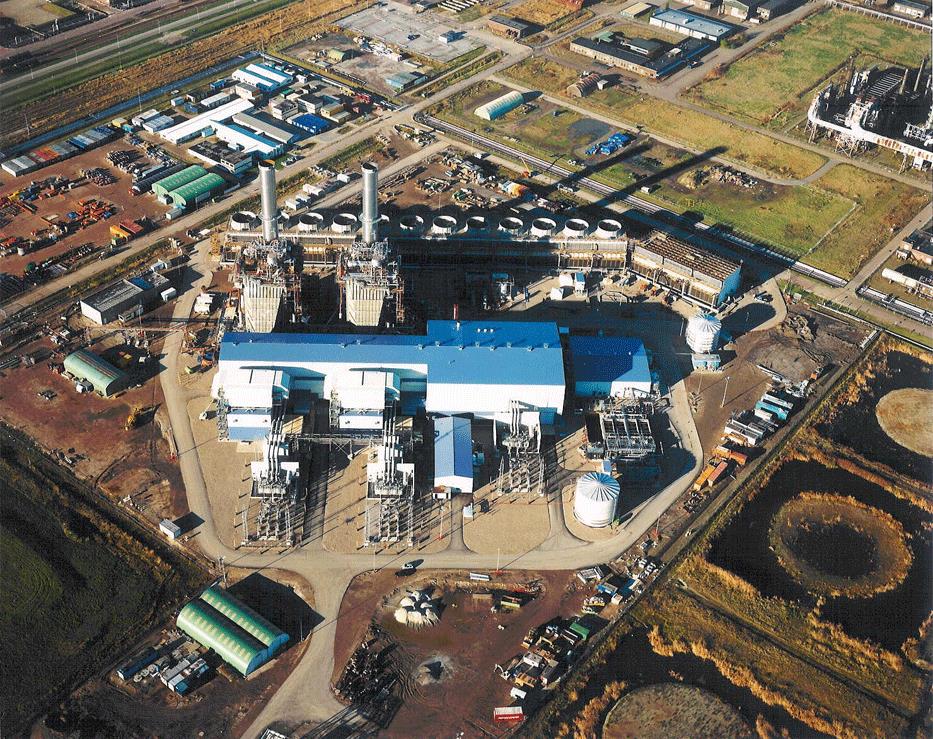

Rinjmod Power Plant is located 15km far from Rotterdam.

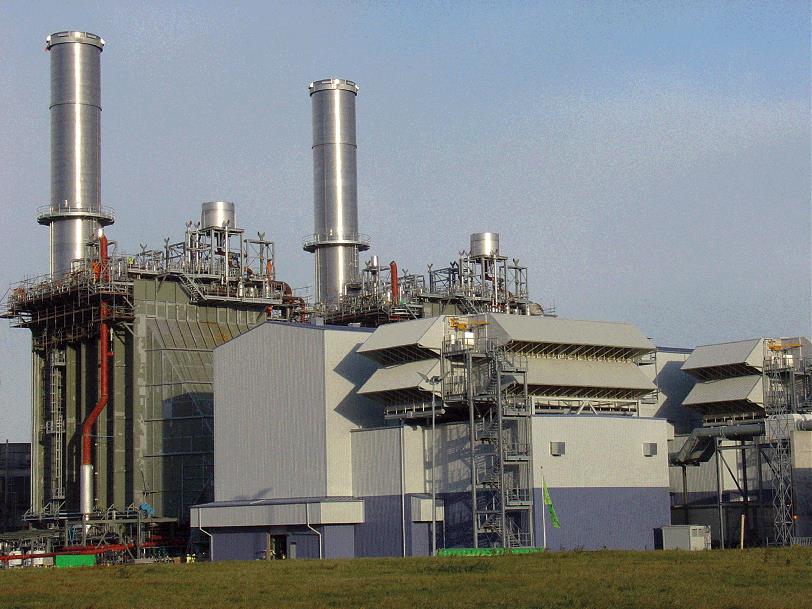

The Rinjmod Power Plant, is a natural -gas fueled facility with a nominal 790MW electricity and 350 tones per hour of steam net output.

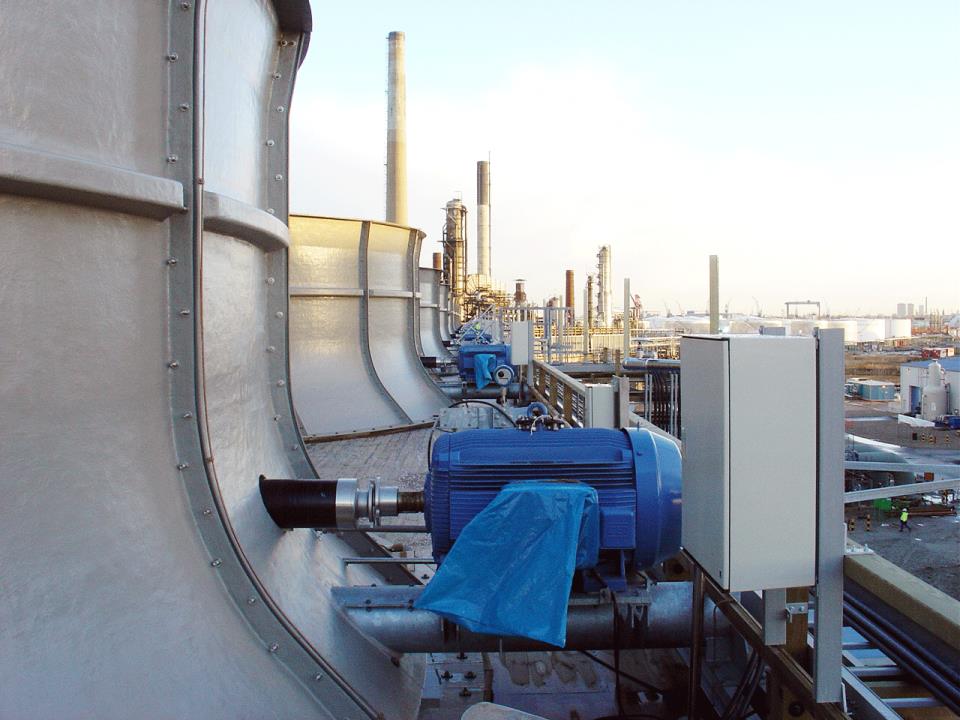

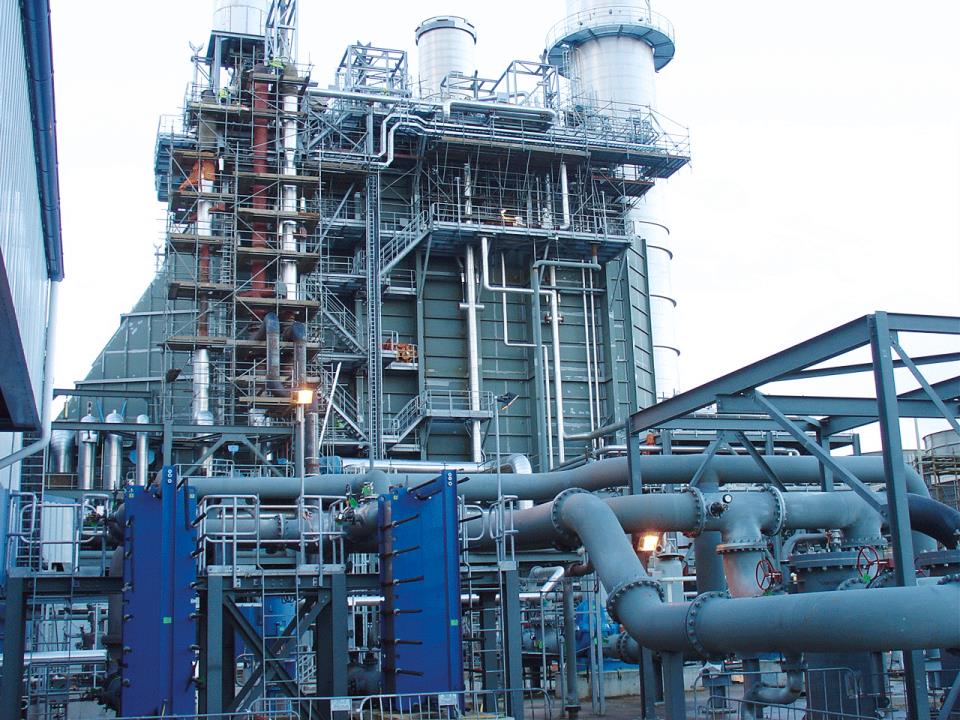

The plant consist of two combustion turbine generators, two fired heat recovery steam generators and one lateral exhaust steam turbine generator in a 2x2x1 configuration. Plant cooling is provided by a mechanical draft, plume-abated cooling tower, with make up water from the nearby petroleum haven, following processing through an Acti-floc clarifier.

Gas turbines by Siemens, steam turbine by Alstom, HRSG by Standartfazel.



  • Installation Works
  • Testing
  • Pre-commissioning
  • Commissioning Support
  • And Design Engineering for Lighting System, Earthing System, Lightning Protection System, and Fire Alarm System.
