Dubai Metro Expo 2020

Dubai / UAE / 2021

Ana Yüklenici : CWJV ACCIONA & GULERMAK

Başlangıç Tarihi : 04/2018

Bitiş Tarihi : 04/2021

İşlerin Elektrik Kapsamı

  • LV Distribution
  • Submain Power Distribution
  • Standby Generators
  • UPS (Uninterruptible Power Supply)
  • CBS (Central Battery System)
  • Earthing and Lightning Protection
  • Cabling and Containment
  • Lighting & Small Power
  • Emergency Lighting
  • Renewable Systems
  • Data
Dubai Metro Expo 2020
Dubai Metro Expo 2020
Dubai Metro Expo 2020 Dubai Metro Expo 2020
Dubai Metro Expo 2020 Dubai Metro Expo 2020
Dubai Metro Expo 2020 Dubai Metro Expo 2020

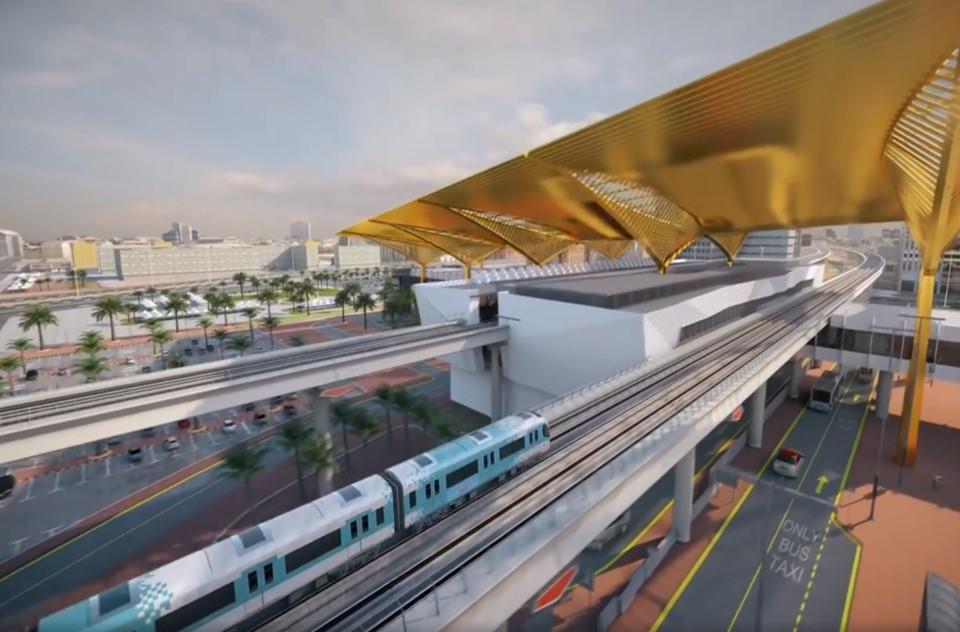

Route 2020, which is an extension of Dubai Metro Red Line, will feature driverless Rolling stock.

Route 2020 is a five-stage extension of the Dubai Metro Red Line up to the World Exposition 2020 (Expo 2020) exhibition site in Dubai, UAE. Estimated to cost $2.9bn, the project represents the first major expansion of the Red Line. The Roads and Transport Authority of Dubai (RTA) is undertaking the project in 2015.

Construction on the metro rail extension route began in September 2016 and is expected to be completed by the end of 2019, while operations are planned to commence by May 2020.

The new route is expected to serve approximately 270,000 commuters travelling to and from commercial and residential areas.

The Route 2020 comprises a 15km-long line, of which 11.8km will be an elevated section and the remaining 3.2km underground which will have depth ranging between 12.5m and 36m.

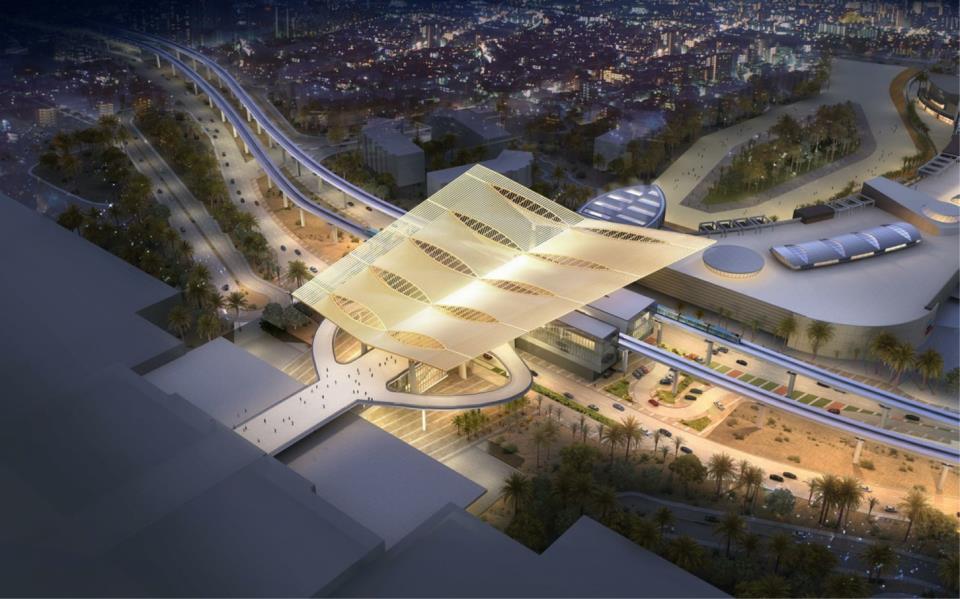

The route will have seven LEED Gold-certified stations including three interchange and two underground stations. The plan also includes the creation of an iconic station at the exhibition site and an interchange station on the Red Line at the Nakheel Harbour and Tower.

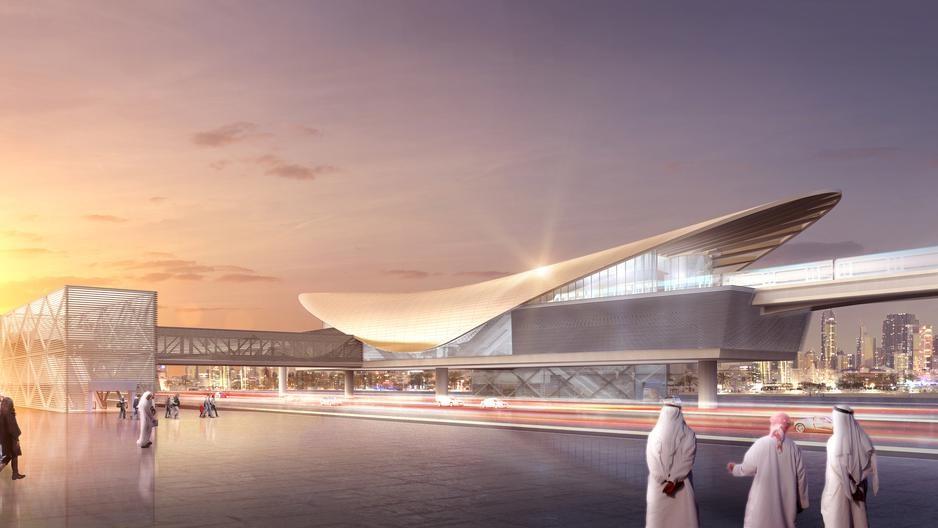

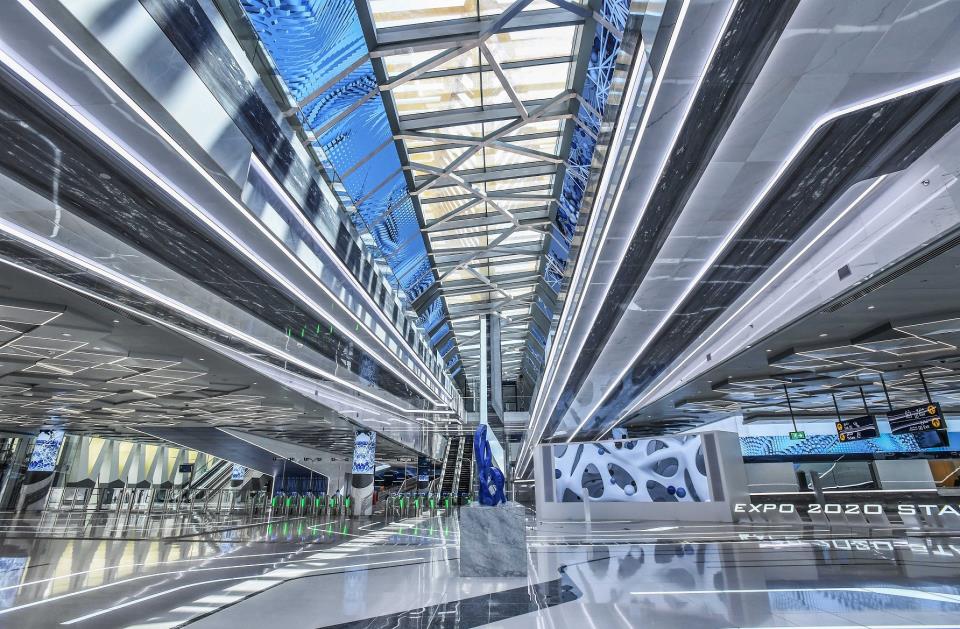

The main Expo Station is designed to represent the wings of a plane. The exquisite outer structure of the Expo station comprising a sweep and a curve will make it stand out from all the other stations being built along the Route 2020.

The new line will provide a single-seat journey for passengers arriving at Dubai International Airport to the Expo 2020 site. Initial projected ridership figures are 125,000 passengers per day, rising to 275,000 by model year 2030, by which time it is anticipated that Route 2020 will extend to the new Al Maktoum International Airport and provide direct connectivity between both international aviation hubs of Dubai.

Total Under Ground Length – 2,8km

Total Viaduct Lentgh – 6km

Overall Route for South Scope – 9,5km

İşlerin Mekanik Kapsamı

  • Chilled Water
  • Ventilation
  • Air Conditioning
  • Smoke Management



Fire Protection Services

  • Automatic Fire Sprinkler System
  • Clean Agent Fire Suppression System
  • Foam Water Sprinkler System
  • Standpipe System
  • Fire Water Storage Tanks and Pumps
  • Portable Fire Extinguishers



Public Health Services

  • Potable Water
  • Hot Water
  • Water Supply Sub Metering
  • Condensate Drainage and Recovery
  • Sanitary Drainage System
  • Below Ground Drainage System
  • Storm Water Drainage
  • Landscape Irrigation
  • Utility Interface



Environmental Control System

  • Hardware requirements for the ECS Master Cabinet
  • Hardware requirements for the ECS Outstation Cabinets (Major and Minor)
  • Hardware requirements for the Smoke Control Panel
  • Specific Communications Requirements
  • Mode Control



TUNNEL Ventilation System

  • Tunnel Ventilation Fans
  • Air Handling Units and sensors
  • Motorised Fire Dampers
  • Illuminated Tunnel Emergency Exit Signage System
  • Mode Control
